This guide introduces the modular architecture that forms the foundation of your AnySecura system. You'll understand how the client, server, and console modules work together to enable centralized management across your network.

We'll then explore how this flexible framework scales, from a basic local setup to a distributed deployment using AnySecura Repeaters, ensuring reliable policy enforcement and data collection even in complex environments.

AnySecura's Basic Operating Framework defines the modular client-server architecture that underpins all system operations, enabling centralized management and scalable deployment across distributed networks.

The AnySecura system consists of three main modules: the client module, the server module, and the console module. These can be installed on networked computers according to management requirements.

Client Module: Collects data and enforces system management policies. It is installed on each computer that needs to be managed.

Server Module: Stores system data and management policies. It is typically installed on high-performance computers with large storage capacity.

Console Module: Allows administrators to view system data, configure management policies, and perform real-time maintenance. It is usually installed on administrators’ computers, but can also be installed on the same machine as the server module.

Basic Framework

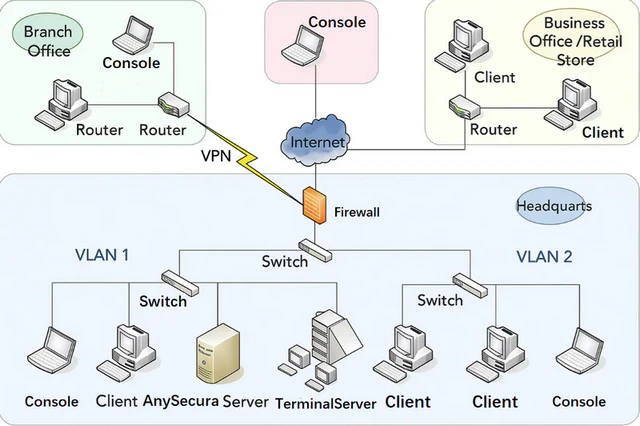

The basic system framework is illustrated in the diagram below:

AnySecura is built on a TCP/IP network architecture, allowing flexible extension from local networks to remote and geographically dispersed networks. The server can connect to remote computers via a Virtual Private Network (VPN) or the Internet, enabling centralized management of large and complex networks. The console can also connect to remote servers over the Internet for monitoring branch offices.

Repeater Framework

For larger and more complex networks, a repeater framework can be deployed on top of the basic system. Repeaters are installed in each subnet to manage client connections, while linking to the main server. This ensures smooth communication between clients and the server, proper policy deployment, and normal log uploads to the server. Deploying multiple repeaters can expand the processing capacity of the main server, making the system more suitable for large-scale, geographically distributed network environments.

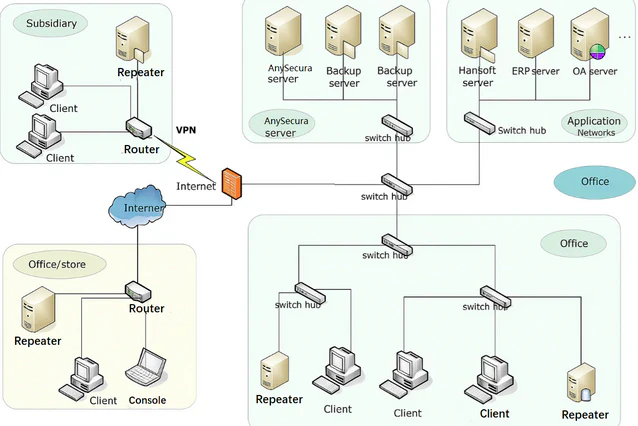

The system’s repeater framework is illustrated in the diagram below:

Basic Functions of the Server Module:

• Manages all client computers and distributes relevant rules and instructions.
• Collects and stores data gathered from clients.
• Provides flexible record management, including viewing, archiving, and searching.

Basic Functions of the Repeater Module:

• Connects to the main server and obtains authorization, forwarding server rules and instructions to connected clients.
• Collects client data and uploads it to the main server.

Basic Functions of the Console Module:

• Views and audits client data.
• Performs data statistics, analysis, and export.
• Monitors client computers in real time and performs system maintenance.
• Configures monitoring rules and management policies.

Basic Functions of the Client Module:

• Executes various management policies set by the system.
• Collects operational data from the client computer.
• Periodically sends collected data to the server.
• Performs monitoring actions based on instructions from the console.
