19.1 Server Configuration

If the company already has an AD domain or LDAP, and unified identity authentication and management are required on client machines, the User System Management feature can be used.

To access the User System Management interface, select Tools -> Server Management -> User System Management.

Select User System Management -> Server Configuration to add the corresponding AD domain server or LDAP server configuration.

Icon Button Descriptions:

Icon Button	Description
	Add a new server configuration.
	Move the selected server configuration up one position to adjust priority.
	Move the selected server configuration down one position to adjust priority.
	Edit the selected server configuration.
	Delete the selected server configuration.

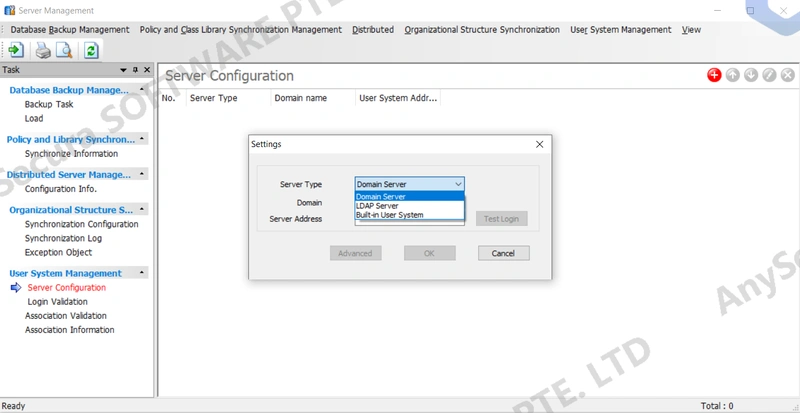

Click the "" to open the server settings interface. Select the server type, and input the domain name and IP address of the domain server.The server type can be either "LDAP Server" or "Domain Server."If LDAP Server is selected, click the "Advanced Settings" button to enter the LDAP server's advanced settings interface, where you can configure the LDAP server's port, protocol version, SSL usage, and whether to use anonymous connections.

After configuring the server parameters, click the "Test Login" button to open the connection test window. Enter the username and password for the configured server. Finally, click "OK" to add a new server configuration.
